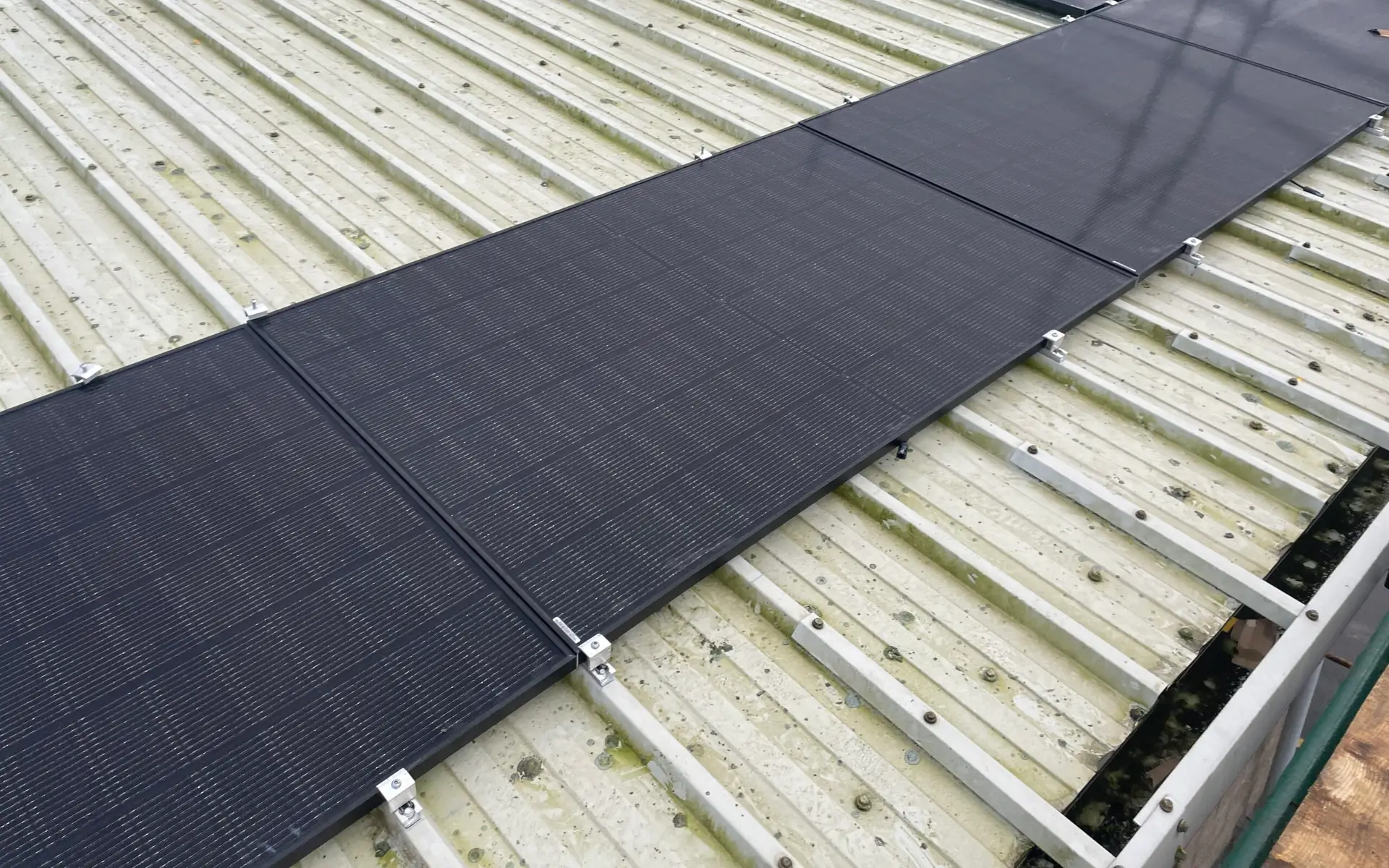

A long run of black solar panels on a metal roof with mounting rails alongside

B9 group installation

Home battery

SigenStor

A modular home battery with the hybrid inverter built into the same system.

  • Free survey
  • Fixed written quote
  • NIE paperwork handled
  • Part of the B9 Energy group, in renewables since 1992
Battery module size (total)
6.02 or 9.04 kWh
Battery modules per system
1 to 6
Inverter output (single phase)
3 to 12 kW
Backup switchover (with Sigen Energy Gateway)
0 ms

Figures are the manufacturer’s own. Each is linked to its source in the specifications below.

What the SigenStor is

SigenStor is Sigenergy's home energy storage system. Sigenergy describes it as five functions in one: solar inverter, EV DC charger, battery power conversion, battery pack and energy management. In practice you choose an Energy Controller (the hybrid inverter) and between one and six stackable battery modules. The EV DC charging module is listed by Sigenergy as a separate product that works with the Energy Controller.

The SigenStor is the battery we typically fit.

Read the manufacturer’s page for the SigenStor

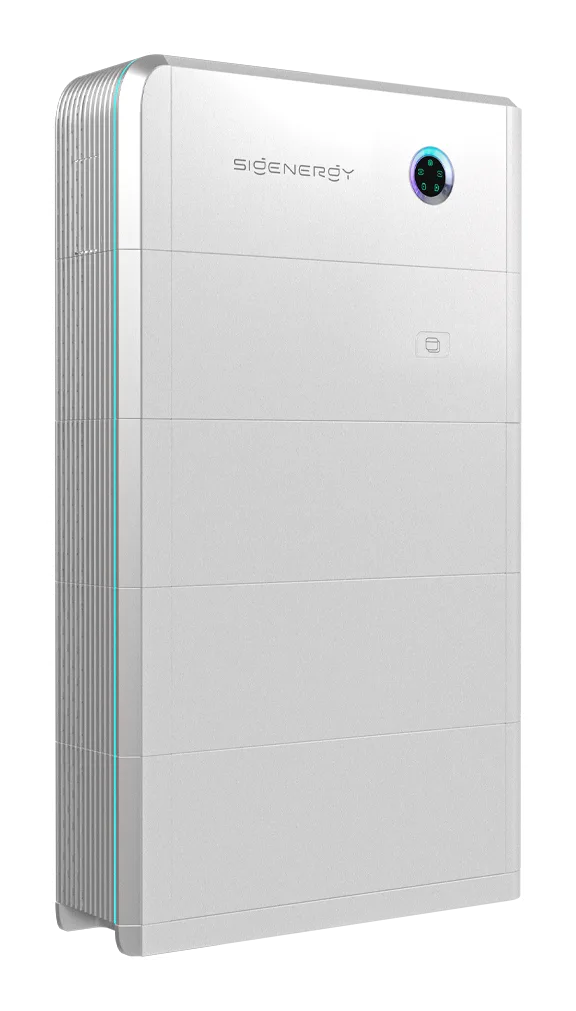

SigenStor home battery, a tall white wall-standing unit with the Sigenergy logo and a circular indicator
Image: Sigenergy

Specifications

As published by Sigenergy. Open a group to see the figures and where each came from.

What the system is made of
Five functions in one systemSolar inverter, EV DC charger, battery power conversion, battery pack and energy management system Source
Energy Controller (hybrid inverter)SigenStor EC, available in single-phase, three-phase and three-phase low-voltage versions Source
Battery modulesSigen Battery (SigenStor BAT), stackable, with a DC-DC optimiser in each pack so old and new modules can be mixed Source
EV DC charging moduleListed as a separate product (SigenStor EVDC) with its own datasheet; it must be used together with a Sigen Energy Controller Source
Backup gatewayThe 0 ms switchover figure needs the Sigen Energy Gateway fitted alongside the Energy Controller and battery Source
Capacity
Battery chemistryLiFePO4 (lithium iron phosphate), 314 Ah cells Source
Total energy per module6.02 kWh (SigenStor BAT 6.0) or 9.04 kWh (SigenStor BAT 10.0) Source
Usable energy per module5.84 kWh or 8.76 kWh Source
Depth of discharge100% of the usable capacity Source
Modules per controller1 to 6. Six 6.02 kWh modules is 36.12 kWh and six 9.04 kWh modules is 54.24 kWh total (our arithmetic from the figures above) Source
Smallest systemOne module: 6.02 kWh total, 5.84 kWh usable (our reading of the datasheet) Source
Power
Inverter AC output, single phase3.0 to 12.0 kW across the range (3.0, 3.6, 4.0, 4.6, 5.0, 6.0, 8.0, 10.0, 12.0 kW) Source
Inverter AC output, three phase5.0 to 30.0 kW Source
Nominal output voltage, single phase220 / 230 / 240 V, 50 / 60 Hz Source
Battery charge and discharge power per module3.0 kW (6.0 module) or 4.6 kW (10.0 module) continuous; 4.5 kW or 6.9 kW for 10 seconds Source
Solar inputs, single phase2 to 4 MPP trackers depending on model, 50 to 550 V, 16 A per tracker Source
Backup
Load-side disruption on grid failure0 ms, with the Sigen Energy Gateway used together with the Energy Controller and Sigen Battery Source
Peak output in off-grid mode2 times the nominal output power for 10 seconds; Sigenergy notes real load starting depends on the load type Source
Warranty and life
Product warranty10 years on SigenStor BAT, SigenStor EC and SigenStor BC; 3 years on the EV DC module; 2 years on the decorative-cover light strip (Europe warranty document, products installed on or after 1 June 2023) Source
Performance warrantyBattery keeps 60% of usable energy for 10 years, or a minimum throughput (20.44 MWh for the 6.0 module, 30.66 MWh for the 10.0 module), whichever comes first Source
Conditions of the 10-year warrantyInstalled by a skilled and trained installer; kept connected to the internet for firmware updates (coverage drops to 5 years if offline for over a year in total); claims made within 30 days of the failure; transferable only while the equipment stays at its original location Source
Cycle life10,000 cycles, a cell manufacturer figure tested at 25 degrees C, 0.5C, to 60% state of health Source
Physical
Battery module dimensions (W / H / D)767 / 270 / 265 mm Source
Battery module weight62 kg (6.0 module) or 78 kg (10.0 module) Source
Energy Controller weight and size18 kg (smaller single-phase models) to 36 kg; about 700 / 300 / 245 to 260 mm (W / H / D) Source
Ingress protectionIP66 Source
Operating temperature-20 to 55 degrees C for the battery; -30 to 60 degrees C for the Energy Controller Source
InstallationFloor standing or wall mounted; natural convection cooling for the battery Source
App and standards
AppmySigen app: energy flow tracking from generation to consumption, with over-the-air system updates Source
Product standards listedBattery: IEC/EN 62619, IEC/EN 63056, UN 38.3, IEC/EN 62477. Energy Controller: IEC/EN 62109-1 and -2 Source
EV DC charging (optional module)12.5 or 25 kW bi-directional, CCS2 connector; V2X features depend on the car and on future standards Source

Specifications can change. We check the current datasheet and warranty terms before we quote.

Good to know

  • Stack it to the size you needOne to six battery modules per Energy Controller, and Sigenergy says old and new modules can be mixed.
  • The inverter is part of the systemThe Energy Controller is a hybrid inverter with its own solar inputs, so even a battery-only install includes one.
  • Backup needs the gatewaySigenergy's 0 ms switchover figure applies when the Sigen Energy Gateway is fitted with the controller and battery.
  • EV charging is a separate moduleThe EV DC charging module has its own datasheet and a 3-year warranty, and works with the Energy Controller.
  • Read the warranty conditions10 years, if installed by a skilled installer and kept online for updates. The document we read is for Europe.
  • Smallest size is one moduleA single module is 6.02 kWh total, 5.84 kWh usable. We size from your evening use at survey.

Price

Adding a battery typically costs £3,000–£7,000 fully installed, depending on size. The survey confirms the size and the price, and we give you a fixed written quote. See typical prices for the full ranges.

SigenStor questions

Can SigenStor run my home in a power cut?

Yes, if it is set up for it. Sigenergy quotes 0 ms load-side disruption, but only when its Energy Gateway is fitted together with the Energy Controller and battery. As with any battery, backup is a specification choice made at the start, and we would plan which circuits it covers at survey. Peak output in off-grid mode is limited to twice the controller's nominal output for 10 seconds, so heavy loads such as an electric shower need checking.

Can I add more battery modules later?

Sigenergy designs the battery to be stacked, up to six modules per Energy Controller, and says old and new modules can be mixed because each pack has its own optimiser. The limit is the controller: if you might want six modules, the controller and the battery's power rating need to suit that from day one. We would check this against your likely future needs at survey.

Does SigenStor work with my existing solar panels?

The SigenStor Energy Controller is a hybrid inverter with its own solar inputs, so it is designed to take the panels' output directly. If you have an existing system, the usual choices are to replace the old inverter with the hybrid or to add a separate AC-coupled battery. Sigenergy's published SigenStor datasheets do not describe an AC-coupled connection to a third-party inverter, so we would confirm the best route for your roof at survey.

How big a battery do I need for my home?

Roughly the electricity you use in the evening and overnight, which for many Northern Ireland homes is 6 to 10 kWh. SigenStor's modules are 5.84 kWh and 8.76 kWh usable, so a single module covers a smaller home and two modules cover a larger one. Buying more than you cycle each day adds cost without adding savings, so we size from your actual usage.

Is the EV charger part of SigenStor?

Sigenergy markets SigenStor as including an EV DC charger, but lists the EV DC charging module as its own product with its own datasheet and warranty (3 years), and says it must be used with a Sigen Energy Controller. Treat it as an add-on to confirm when you ask for a quote. Many homes use an ordinary AC charger instead, and we can talk through which suits your car.

How long is the warranty?

Sigenergy's Europe warranty document gives 10 years on the battery and Energy Controller, with a promise that the battery keeps 60% of its usable energy over that time. It requires installation by a skilled installer, an internet connection for updates and claims within 30 days. That document refers to Europe and does not name the UK, so we will confirm the terms that apply to a UK purchase with Sigenergy's UK supplier before you buy.

Is SigenStor safe to have in the house?

It uses lithium iron phosphate cells, the more thermally stable chemistry, and Sigenergy lists IEC/EN 62619 and UN 38.3 testing for the battery. The units are rated IP66 and can be installed outdoors or in a garage, within the temperature limits. Siting, ventilation and escape routes are covered in our installation checks.
